Rectangle Utilities¶

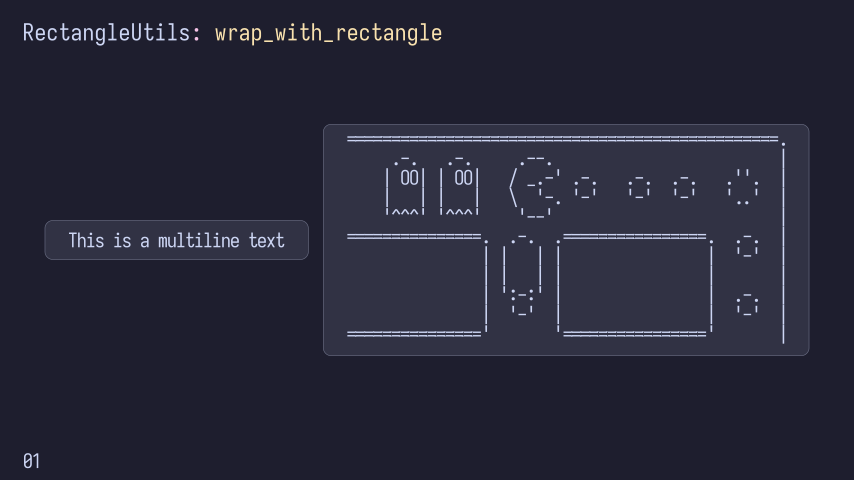

Example: MyWrapWithRectanlgeExampleScene ¶
Code: MyWrapWithRectanlgeExampleScene
import manim as m
from manta.color_theme.catppucin.catppuccin_mocha import CatppuccinMochaTheme
from manta.components.neural_networks_utils import NeuralNetworkUtils
from manta.components.uml_utils import UmlUtils
from manta.slide_templates.minimal.minimal_slide_template import MinimalSlideTemplate
# https://www.asciiart.eu/video-games/pacman
ascii_art = r"""
================================================.
.-. .-. .--. |
| OO| | OO| / _.-' .-. .-. .-. .''. |
| | | | \ '-. '-' '-' '-' '..' |
'^^^' '^^^' '--' |
===============. .-. .================. .-. |
| | | | | '-' |
| | | | | |
| ':-:' | | .-. |
| '-' | | '-' |
===============' '================' |
"""
class MyWrapWithRectanlgeExampleScene(UmlUtils, NeuralNetworkUtils, MinimalSlideTemplate):
subtitle_color = CatppuccinMochaTheme.yellow
title_seperator_color = CatppuccinMochaTheme.magenta
def construct(self):
text = self.term_text("This is a "
"multiline text")
wrapped_text = self.wrap_with_rectangle(text)
text_circuit = self.term_paragraph(ascii_art)
wrapped_ascii_art = self.wrap_with_rectangle(text_circuit)
wrapper_group = m.VGroup(wrapped_text, wrapped_ascii_art).arrange(direction=m.RIGHT)
wrapper_group.move_to(m.ORIGIN)
self.play(
self.set_title_row(
title="RectangleUtils",
seperator=": ",
subtitle="wrap_with_rectangle",
),
m.FadeIn(
wrapper_group
)
)
if __name__ == '__main__':
MyWrapWithRectanlgeExampleScene.render_video_medium()

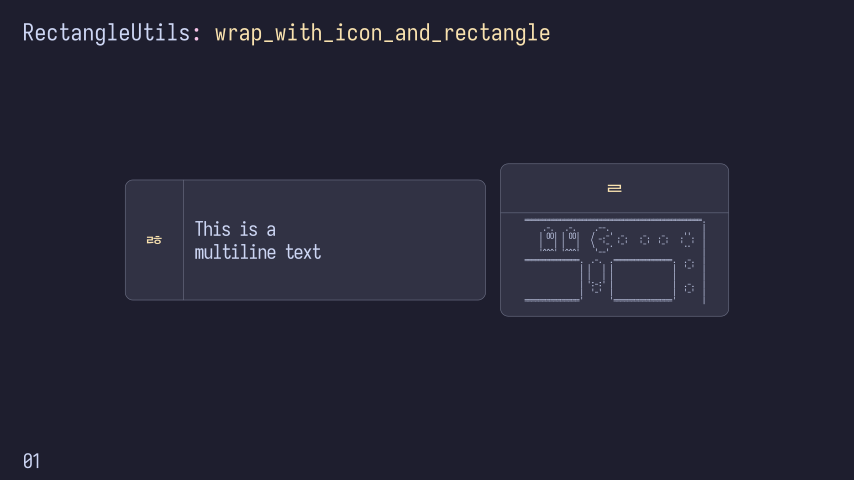

Example: MyWrapWithRectanlgeAndIconExampleScene ¶
Code: MyWrapWithRectanlgeAndIconExampleScene
import manim as m
from pyrr.rectangle import width
from manta.color_theme.catppucin.catppuccin_mocha import CatppuccinMochaTheme
from manta.components.neural_networks_utils import NeuralNetworkUtils
from manta.components.uml_utils import UmlUtils
from manta.slide_templates.minimal.minimal_slide_template import MinimalSlideTemplate
# https://www.asciiart.eu/video-games/pacman
ascii_art = r"""
================================================.
.-. .-. .--. |
| OO| | OO| / _.-' .-. .-. .-. .''. |
| | | | \ '-. '-' '-' '-' '..' |
'^^^' '^^^' '--' |
===============. .-. .================. .-. |
| | | | | '-' |
| | | | | |
| ':-:' | | .-. |
| '-' | | '-' |
===============' '================' |
"""
class MyWrapWithRectanlgeAndIconExampleScene(UmlUtils, NeuralNetworkUtils, MinimalSlideTemplate):
subtitle_color = CatppuccinMochaTheme.yellow
title_seperator_color = CatppuccinMochaTheme.magenta
def construct(self):
text = self.term_text("This is a \n multiline text")
wrapped_text = self.wrap_with_icon_and_rectangle(
text,
icon='users',
# if with is not set, the width will be calculated automatically
# same for height
width=6,
height=2
)
text_ascii_art = self.term_paragraph(ascii_art).scale_to_fit_width(3)
wrapped_ascii_art = self.wrap_with_icon_and_rectangle(text_ascii_art, direction='up', icon='ghost')
wrapper_group = m.VGroup(wrapped_text, wrapped_ascii_art).arrange(direction=m.RIGHT)
self.play(
self.set_title_row(
title="RectangleUtils",
seperator=": ",
subtitle="wrap_with_icon_and_rectangle",
),
m.FadeIn(
wrapper_group
)
)
if __name__ == '__main__':
MyWrapWithRectanlgeAndIconExampleScene.render_video_medium()

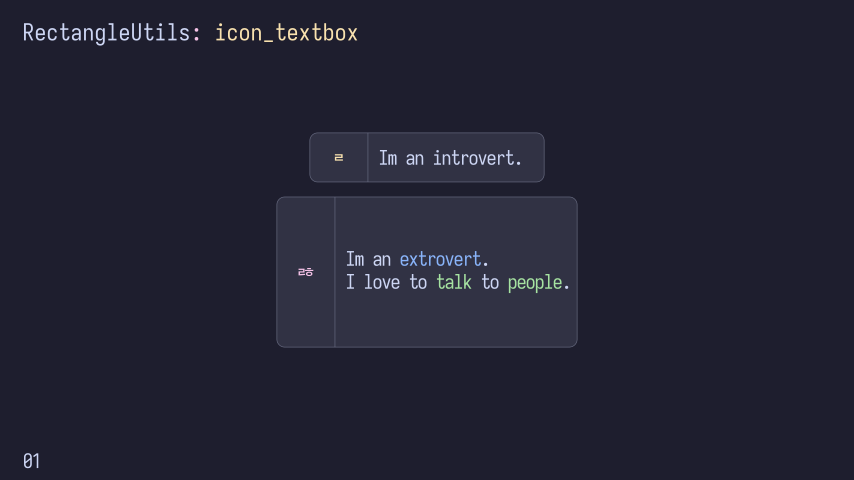

Example: MyIconTextBoxExampleScene ¶
Code: MyIconTextBoxExampleScene
import manim as m
from pyrr.rectangle import width, height
from manta.color_theme.catppucin.catppuccin_mocha import CatppuccinMochaTheme
from manta.components.neural_networks_utils import NeuralNetworkUtils
from manta.components.uml_utils import UmlUtils
from manta.slide_templates.minimal.minimal_slide_template import MinimalSlideTemplate
# https://www.asciiart.eu/video-games/pacman
ascii_art = r"""
================================================.
.-. .-. .--. |
| OO| | OO| / _.-' .-. .-. .-. .''. |
| | | | \ '-. '-' '-' '-' '..' |
'^^^' '^^^' '--' |
===============. .-. .================. .-. |
| | | | | '-' |
| | | | | |
| ':-:' | | .-. |
| '-' | | '-' |
===============' '================' |
"""
class MyIconTextBoxExampleScene(UmlUtils, NeuralNetworkUtils, MinimalSlideTemplate):
subtitle_color = CatppuccinMochaTheme.yellow
title_seperator_color = CatppuccinMochaTheme.magenta
def construct(self):
icon_text_box1 = self.icon_textbox("Im an introvert.", icon='user')
icon_text_box2 = self.icon_textbox(
"Im an extrovert. \n I love to talk to people.",
icon='users',
icon_color=self.magenta,
# if with is not set, the width will be calculated automatically
# same for height
width=5,
height=2.5,
t2c={"extrovert": self.blue},
# this is an alternative to t2c
# just type the words you want to colorize
# and specify the color
t2c_strs=["talk", "people"],
t2c_color=self.green,
)
wrapper_group = m.VGroup(icon_text_box1, icon_text_box2).arrange(direction=m.DOWN)
self.play(
self.set_title_row(
title="RectangleUtils",
seperator=": ",
subtitle="icon_textbox",
),
m.FadeIn(
wrapper_group
)
)
if __name__ == '__main__':
MyIconTextBoxExampleScene.render_video_medium()

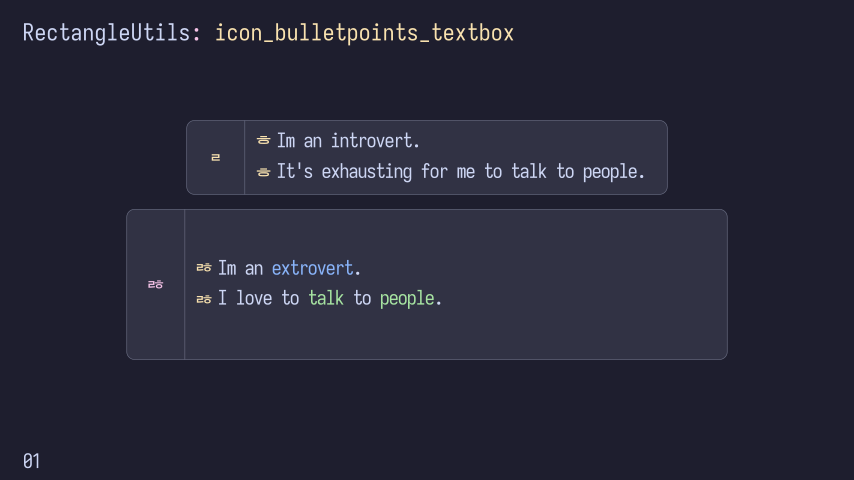

Example: MyIconBulletpointTextBoxExampleScene ¶
Code: MyIconBulletpointTextBoxExampleScene
import manim as m
from pyrr.rectangle import width, height
from manta.color_theme.catppucin.catppuccin_mocha import CatppuccinMochaTheme
from manta.components.neural_networks_utils import NeuralNetworkUtils
from manta.components.uml_utils import UmlUtils
from manta.slide_templates.minimal.minimal_slide_template import MinimalSlideTemplate
class MyIconBulletpointTextBoxExampleScene(UmlUtils, NeuralNetworkUtils, MinimalSlideTemplate):
subtitle_color = CatppuccinMochaTheme.yellow
title_seperator_color = CatppuccinMochaTheme.magenta
def construct(self):
icon_text_box1 = self.icon_bulletpoints_textbox(
["Im an introvert.", "It's exhausting for me to talk to people."],
icon='user'
)
icon_text_box2 = self.icon_bulletpoints_textbox(
["Im an extrovert.", " I love to talk to people."],
icon='users',
bullet_icon='users',
icon_color=self.magenta,
# if with is not set, the width will be calculated automatically
# same for height
width=10,
height=2.5,
t2c={"extrovert": self.blue},
# this is an alternative to t2c
# just type the words you want to colorize
# and specify the color
t2c_strs=["talk", "people"],
t2c_color=self.green,
)
wrapper_group = m.VGroup(icon_text_box1, icon_text_box2).arrange(direction=m.DOWN)
self.play(
self.set_title_row(
title="RectangleUtils",
seperator=": ",
subtitle="icon_bulletpoints_textbox",
),
m.FadeIn(
wrapper_group
)
)
if __name__ == '__main__':
MyIconBulletpointTextBoxExampleScene.render_video_medium()

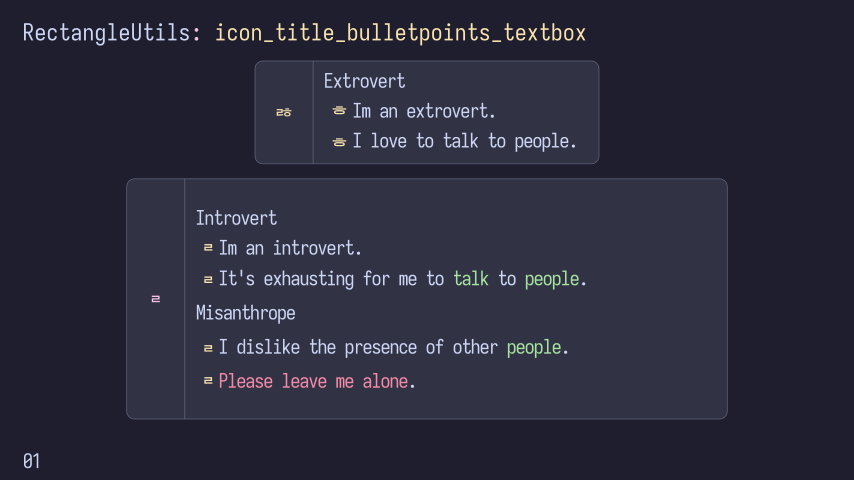

Example: MyTitledIconBulletpointTextBoxExampleScene ¶
Code: MyTitledIconBulletpointTextBoxExampleScene
import manim as m
from pyrr.rectangle import width, height
from manta.color_theme.catppucin.catppuccin_mocha import CatppuccinMochaTheme
from manta.components.neural_networks_utils import NeuralNetworkUtils
from manta.components.uml_utils import UmlUtils
from manta.slide_templates.minimal.minimal_slide_template import MinimalSlideTemplate
class MyTitledIconBulletpointTextBoxExampleScene(UmlUtils, NeuralNetworkUtils, MinimalSlideTemplate):
subtitle_color = CatppuccinMochaTheme.yellow
title_seperator_color = CatppuccinMochaTheme.magenta
def construct(self):
icon_text_box1 = self.icon_title_bulletpoints_textbox(
[
("Extrovert", ["Im an extrovert.", "I love to talk to people."]),
],
icon='users',
)
icon_text_box2 = self.icon_title_bulletpoints_textbox(
[
("Introvert", ["Im an introvert.", "It's exhausting for me to talk to people."]),
("Misanthrope", ["I dislike the presence of other people.", "Please leave me alone."]),
],
icon='user',
bullet_icon='user',
icon_color=self.magenta,
# if with is not set, the width will be calculated automatically
# same for height
width=10,
height=4.0,
t2c={
"extrovert": self.blue,
"Please leave me alone": self.red,
},
# this is an alternative to t2c
# just type the words you want to colorize
# and specify the color
t2c_strs=["talk", "people"],
t2c_color=self.green,
)
wrapper_group = m.VGroup(icon_text_box1, icon_text_box2).arrange(direction=m.DOWN)
self.play(
self.set_title_row(
title="RectangleUtils",
seperator=": ",
subtitle="icon_title_bulletpoints_textbox",
),
m.FadeIn(
wrapper_group
)
)
if __name__ == '__main__':
MyTitledIconBulletpointTextBoxExampleScene.render_video_medium()
