Text¶

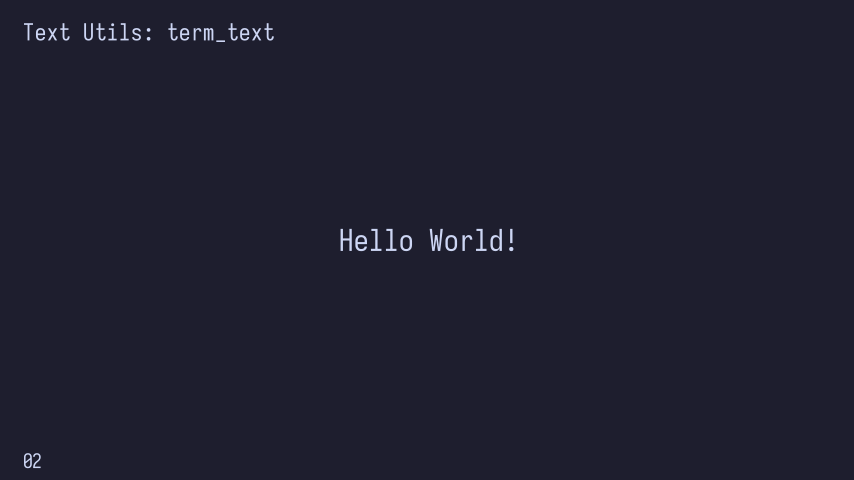

Example: MyTermTextExamplesScene ¶
Code: MyTermTextExamplesScene
import manim as m
from manta.slide_templates.minimal.minimal_slide_template import MinimalSlideTemplate
class MyTermTextExamplesScene(MinimalSlideTemplate):
def construct(self):
self.play(
self.set_title_row(
title="Text Utils",
seperator=": ",
subtitle="term_text"
)
)
my_text= self.term_text("Hello World!", font_size=36)
self.play(
m.FadeIn(my_text),
)
if __name__ == '__main__':
MyTermTextExamplesScene.render_video_medium()

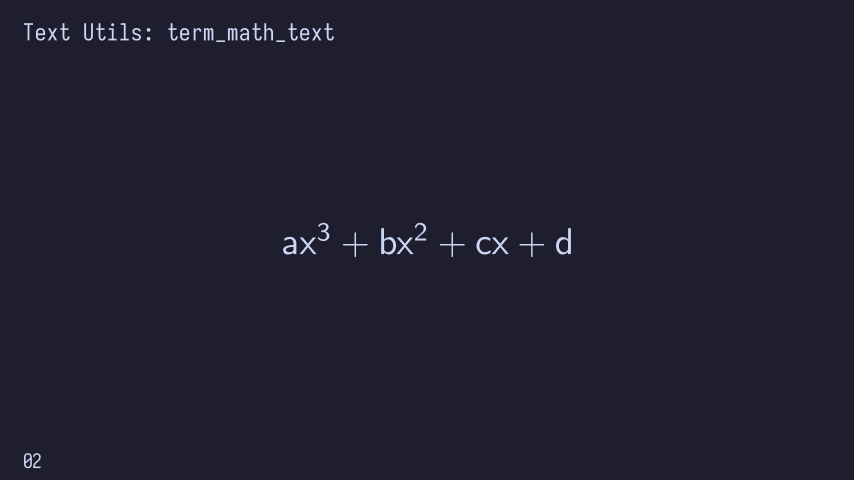

Example: MyTermMathTextExampleScene ¶
Code: MyTermMathTextExampleScene
import manim as m
from manta.slide_templates.minimal.minimal_slide_template import MinimalSlideTemplate
class MyTermMathTextExampleScene(MinimalSlideTemplate):
def construct(self):
self.play(
self.set_title_row(
title="Text Utils",
seperator=": ",
subtitle="term_math_text"
)
)
cubic_polynomial = self.term_math_text("ax^3 + bx^2 + cx + d")
cubic_polynomial.scale(2.5)
self.play(
m.FadeIn(cubic_polynomial ),
)
if __name__ == '__main__':
MyTermMathTextExampleScene.render_video_medium()

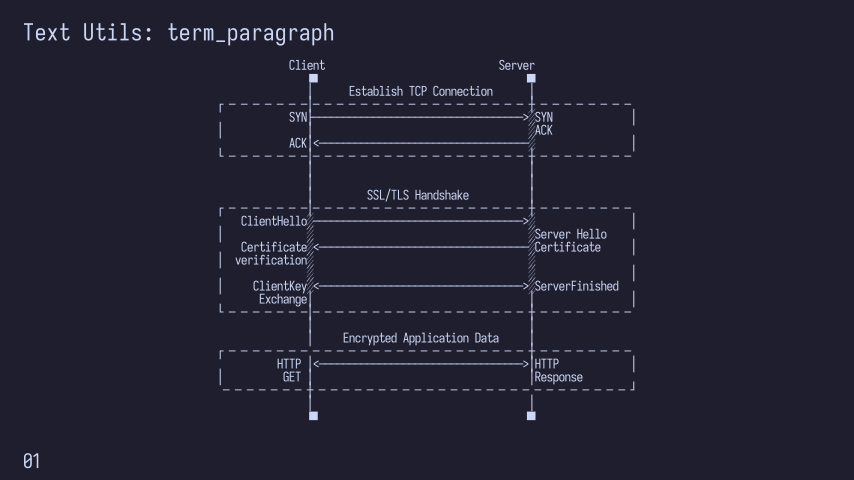

Example: MyMonospaceExampleScene ¶
Code: MyMonospaceExampleScene
import manim as m
from manta.slide_templates.minimal.minimal_slide_template import MinimalSlideTemplate
mono_sketch ="""
Client Server
■ ■
│ Establish TCP Connection │
┌ ─ ─ ─ ─ ─ ─ ─│─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┼ ─ ─ ─ ─ ─ ─ ─ ─
SYN├───────────────────────────────────>░SYN │
│ │ ░ACK
ACK│<───────────────────────────────────░ │
└ ─ ─ ─ ─ ─ ─ ─│─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┼ ─ ─ ─ ─ ─ ─ ─ ─
│ │
│ │
│ SSL/TLS Handshake │
┌ ─ ─ ─ ─ ─ ─ ─│─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┼ ─ ─ ─ ─ ─ ─ ─ ─
ClientHello░───────────────────────────────────>░ │
│ ░ ░Server Hello
Certificate░<───────────────────────────────────░Certificate │
│ verification░ ░
░ ░ │
│ ClientKey░<──────────────────────────────────>░ServerFinished
Exchange│ │ │
└ ─ ─ ─ ─ ─ ─ ─│─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┼ ─ ─ ─ ─ ─ ─ ─ ─
│ │
│ Encrypted Application Data │
┌ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┼ ─ ─ ─ ─ ─ ─ ─ ─
HTTP │<──────────────────────────────────>│HTTP │
│ GET │ │Response
─ ─ ─ ─ ─ ─ ─ ┼ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┘
│ │
■ ■
"""
class MyMonospaceExampleScene(MinimalSlideTemplate):
def construct(self):
mono_space_mobject = self.term_paragraph(
mono_sketch,
).scale_to_fit_height(6)
self.play(
self.set_title_row(
title="Text Utils",
seperator=": ",
subtitle="term_paragraph"
),
m.FadeIn(mono_space_mobject),
)
if __name__ == '__main__':
MyMonospaceExampleScene.render_video_medium()
Example: MyTextLineExamplesScene ¶
Code: MyTextLineExamplesScene
import manim as m
from manta.slide_templates.minimal.minimal_slide_template import MinimalSlideTemplate
class MyTextLineExamplesScene(MinimalSlideTemplate):
def construct(self):
self.play(
self.set_title_row(
title="Text Utils",
seperator=": ",
subtitle="text_line"
)
)
segment1, segment2, segment3 = self.text_line("Hello", ", ", "World!", font_size=36)
self.play(
m.FadeIn(segment1),
m.FadeIn(segment2),
m.FadeIn(segment3),
)
segment1.generate_target()
segment1.target.set_color(self.magenta)
segment1.target.to_edge(m.LEFT, buff=self.med_large_buff)
segment2.generate_target()
segment2.target.set_color(self.green)
segment2.target.to_edge(m.DOWN, buff=self.med_large_buff)
segment3.generate_target()
segment3.target.set_color(self.cyan)
segment3.target.to_edge(m.RIGHT, buff=self.med_large_buff)
self.play(
m.MoveToTarget(segment1),
m.MoveToTarget(segment2),
m.MoveToTarget(segment3),
)
circle1 = self.math_circle(math_text=r"s_1", color=self.magenta)
circle2 = self.math_circle(math_text=r"s_2", color=self.green)
circle3 = self.math_circle(math_text=r"s_3", color=self.cyan)
circle_group = (m.VGroup(circle1, circle2, circle3)
.arrange(m.RIGHT, buff=self.med_large_buff)
.move_to(m.ORIGIN))
self.play(
m.ReplacementTransform(segment1, circle1),
m.ReplacementTransform(segment2, circle2),
m.ReplacementTransform(segment3, circle3),
)
self.wait(2)
if __name__ == '__main__':
MyTextLineExamplesScene.render_video_medium()

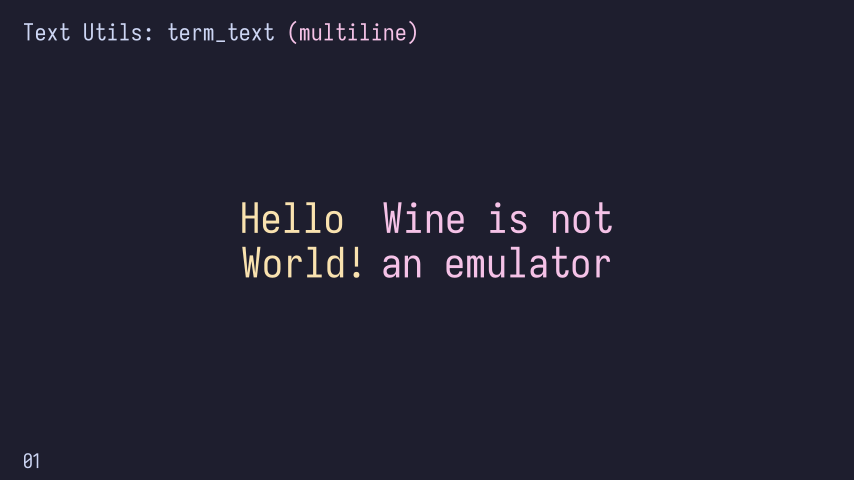

Example: MyTermTextMultilineExampleScene ¶
Code: MyTermTextMultilineExampleScene
import manim as m
from manta.slide_templates.minimal.minimal_slide_template import MinimalSlideTemplate
class MyTermTextMultilineExampleScene(MinimalSlideTemplate):
def construct(self):
my_text = self.term_text("Hello \n World!", font_size=self.font_size_huge, font_color=self.yellow)
wine_text = """Wine is not
an emulator"""
wine_text = self.term_text(wine_text, font_size=self.font_size_huge, color=self.magenta)
text_group = m.VGroup(my_text, wine_text).arrange(m.RIGHT, buff=self.med_large_buff)
text_group.move_to(m.ORIGIN)
self.play(
self.set_title_row(
title="Text Utils",
seperator=": ",
subtitle="term_text (multiline)",
subtitle_kwargs={
"t2c": {"(multiline)": self.magenta}
}
),
m.FadeIn(text_group),
)
if __name__ == '__main__':
MyTermTextMultilineExampleScene.render_video_medium()

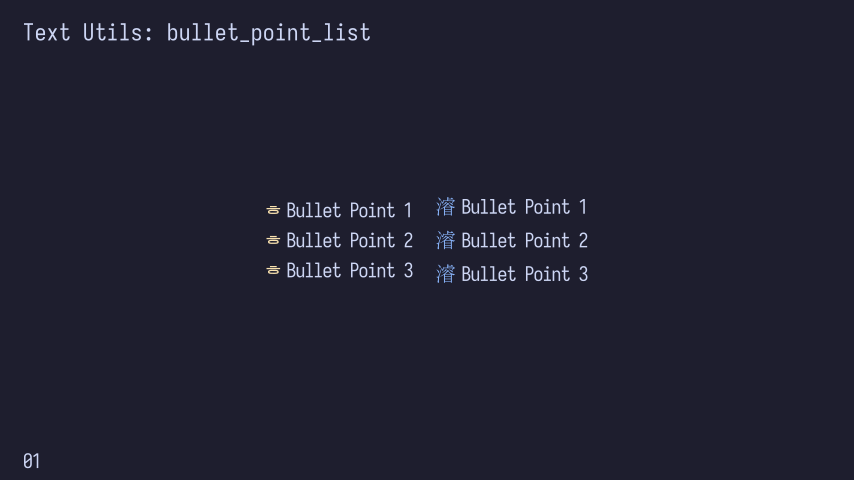

Example: MyBulletpointExampleScene ¶
Code: MyBulletpointExampleScene
import manim as m
from manta.slide_templates.minimal.minimal_slide_template import MinimalSlideTemplate
class MyBulletpointExampleScene(MinimalSlideTemplate):
def construct(self):
my_bullet_point_list1= self.bullet_point_list(
bulletpoints=[
"Bullet Point 1",
"Bullet Point 2",
"Bullet Point 3",
],
)
my_bullet_point_list2 = self.bullet_point_list(
bulletpoints=[
"Bullet Point 1",
"Bullet Point 2",
"Bullet Point 3",
],
bullet_icon='hamburger',
bullet_icon_color=self.blue
)
list_group = m.VGroup(my_bullet_point_list1, my_bullet_point_list2)
list_group.arrange(m.RIGHT, buff=self.med_large_buff)
self.play(
self.set_title_row(
title="Text Utils",
seperator=": ",
subtitle="bullet_point_list"
),
m.FadeIn(list_group),
)
if __name__ == '__main__':
MyBulletpointExampleScene.render_video_medium()

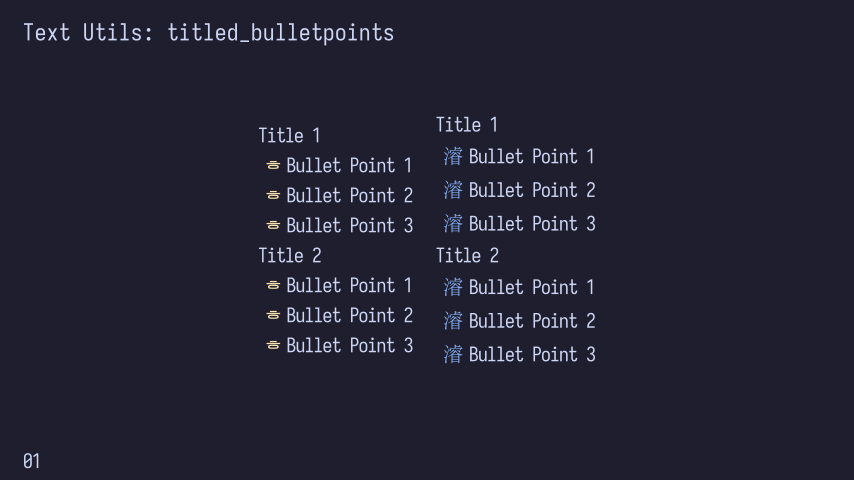

Example: MyTitleBulletpointsExampleScene ¶
Code: MyTitleBulletpointsExampleScene
import manim as m
from manta.slide_templates.minimal.minimal_slide_template import MinimalSlideTemplate
class MyTitleBulletpointsExampleScene(MinimalSlideTemplate):
def construct(self):
titled_bulletpoints= self.titled_bulletpoints(
titled_bulletpoints=[(
"Title 1",
[
"Bullet Point 1",
"Bullet Point 2",
"Bullet Point 3",
]
),
(
"Title 2",
[
"Bullet Point 1",
"Bullet Point 2",
"Bullet Point 3",
]
)
],
)
titled_bulletpoints2 = self.titled_bulletpoints(
titled_bulletpoints=[(
"Title 1",
[
"Bullet Point 1",
"Bullet Point 2",
"Bullet Point 3",
]
),
(
"Title 2",
[
"Bullet Point 1",
"Bullet Point 2",
"Bullet Point 3",
]
)
],
bullet_icon='hamburger',
bullet_icon_color=self.blue
)
my_group = m.VGroup(titled_bulletpoints, titled_bulletpoints2)
my_group.arrange(m.RIGHT, buff=self.med_large_buff)
my_group.move_to(m.ORIGIN)
self.play(
self.set_title_row(
title="Text Utils",
seperator=": ",
subtitle="titled_bulletpoints"
),
m.FadeIn(my_group),
)
if __name__ == '__main__':
MyTitleBulletpointsExampleScene.render_video_medium()
